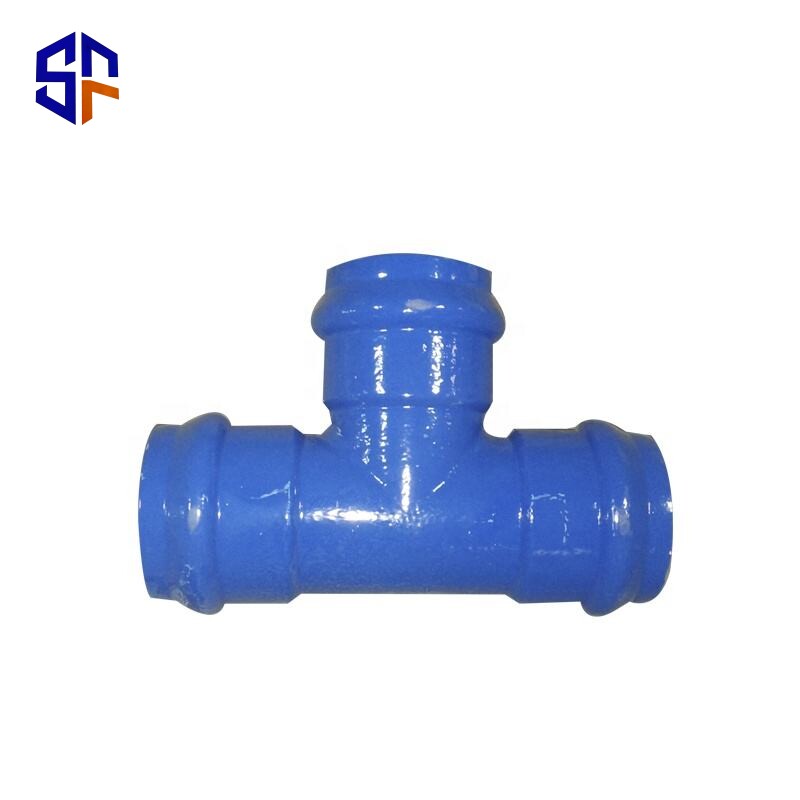

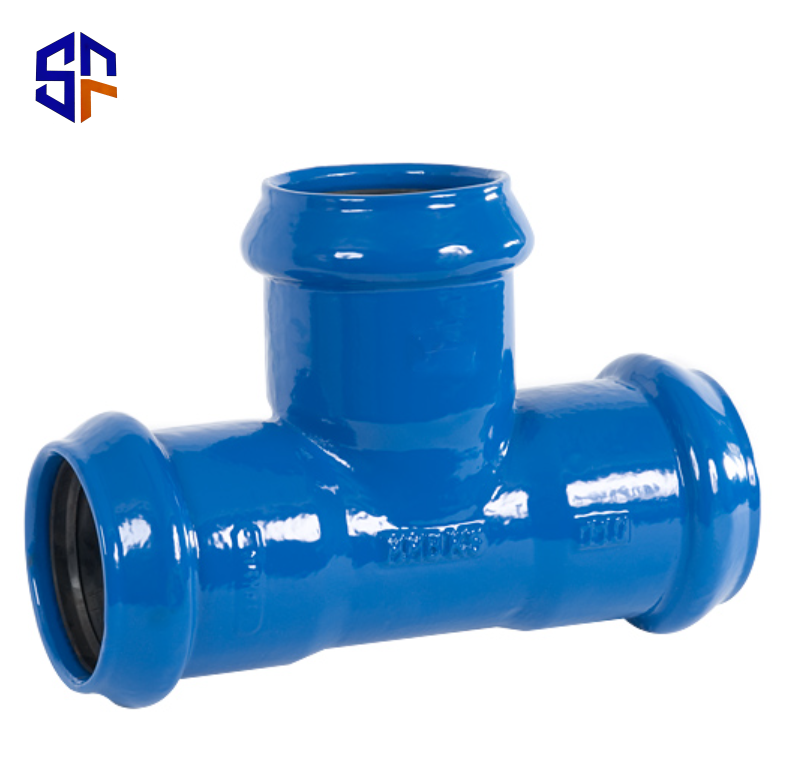

Ductile Iron Tee

Ductile Iron Tee

Our ductile iron pipe fittings series including Double Socket Bend, Double Flange Bend, All Socket Tee, All Flange Tee, Double Flange Taper, Double Socket Taper, All Socket Cross, All Flange Cross, Double Flange Duckfoot Bend Elbow, Double Flange Short Pipe, Collars, Blind Flange and etc
Product Description
Product Display

Our ductile iron pipe fittings series including Double Socket Bend, Double Flange Bend, All Socket Tee, All Flange Tee, Double Flange Taper, Double Socket Taper, All Socket Cross, All Flange Cross, Double Flange Duckfoot Bend Elbow, Double Flange Short Pipe, Collars, Blind Flange and etc

Our ductile iron pipe fittings are widely used for water supply, drainage, sewage, irrigation industry .


Range of Sizes

DN50-DN2000(2''-80'')

Flange Standard

PN10, PN16, PN25, PN40

Design Standard

ISO2531, BS EN545, BS EN598, EN12842, AWWA C110, AWWA C153 and etc

End Connection

Flange or Spigot Socket

Internal Coating

Cement Mortar Lining / Fusion Bonded Epoxy Coating

External Coating

Zinc-Rich Coating +Bitumen Painting /  Fusion Bonded Epoxy Coating

Tensile Strength

>= 420 N/MM2

Elongation

>= 5%

Brinell Hardness

<= 250 HB

Pressure Test

DN80-300mm >=25bar,  DN350-600mm >=16bar,  DN700-1600mm>=10bar

详情

Factory Display
  • ca43ce1a3559f45768c738a1b519dce4
  • c51c94433fb19bbd338cb632c4925013
  • c39e13f5841c829bfe8a809d7b8c6a2d
  • 4f43f10b36edc5c6f3d48a83153c0233
  • 3d8f078f14a01ff7e13dde8a4326c9cb
  • 离心浇筑
Customer Visit
  • 伊拉克客户
  • 法国
  • 1
  • 印度
Project Cases

Mauritania Project



In the process of urban construction in Mauritania, ductile iron pipes have laid a solid foundation for the reliable operation of municipal projects with their excellent performance.

Ethiopia kismayo urban water supply

It is resistant to high temperature and salt-alkali corrosion, adapted to the local desert climate and soil conditions, and ensures long-term and stable water supply in the pipeline.

Durban, South Africa



The flexible interface speeds up installation, is suitable for pipe network renovation in old urban areas, facilitates subsequent maintenance, and reduces operating costs.

Durban City Water Supply, South Africa

Adapted to Durban's hot and humid climate and coastal saline environment, the anti-corrosion coating effectively resists rust and ensures the long-term stability of the water supply system.

Dammam, Saudi Arabia

Adapting to the hot and dry climate of Daman, the pipeline has strong thermal stability, ensuring the reliable operation of the water supply system in hot environments.

Shaanxi sewage renovation

The inner wall anti-corrosion layer resists the erosion of acid and alkali substances in sewage, adapts to complex water quality, and extends the service life of the pipeline.

Xinjiang

Adapting to the large temperature difference between day and night and seasons in Xinjiang, the pipeline has strong stability in thermal expansion and contraction, ensuring smooth water supply.

Greek City Water Supply

Adapted to the water quality characteristics of Greek coastal cities, it resists seawater backflow and salt erosion, and ensures stable water quality.
