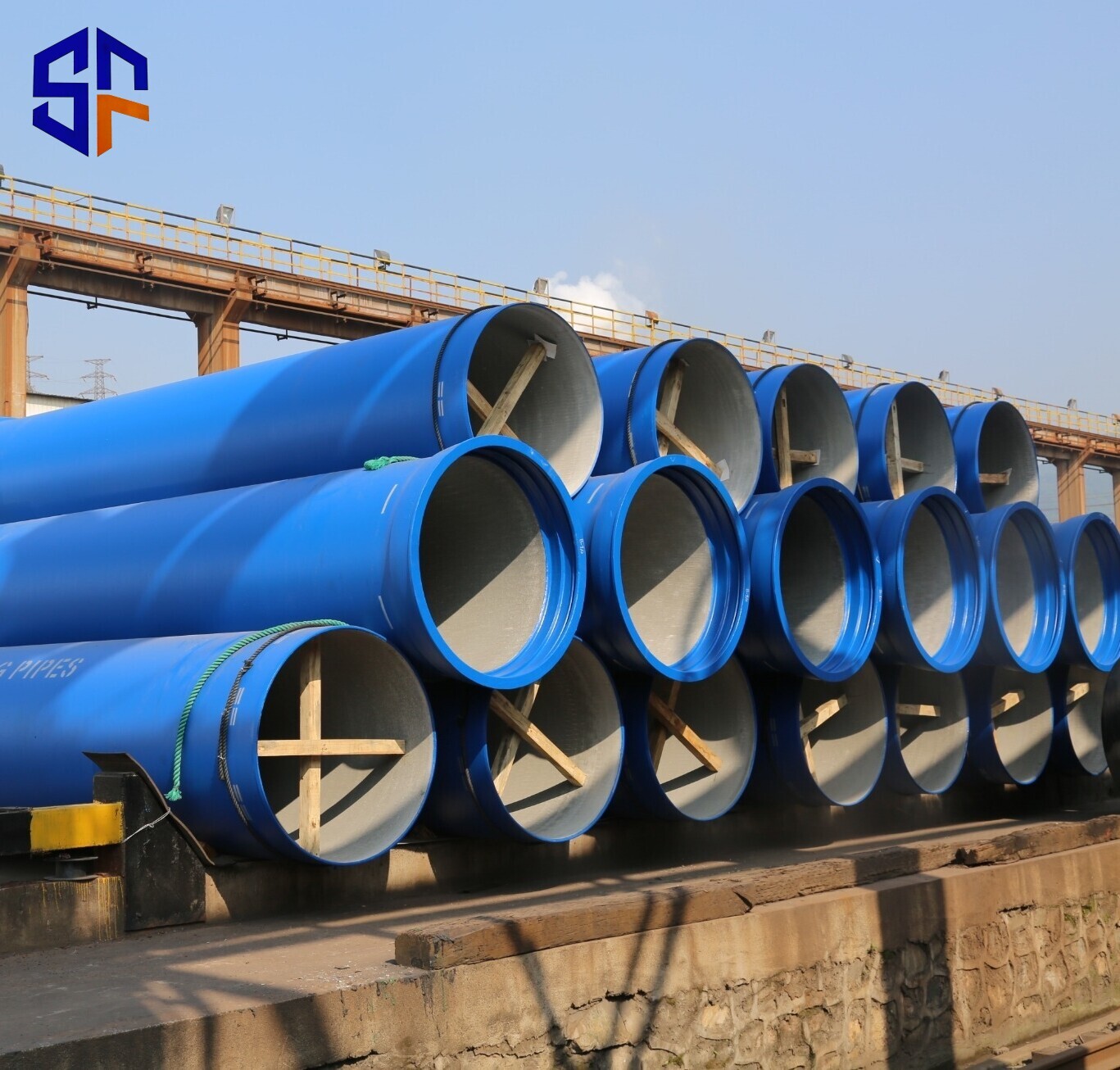

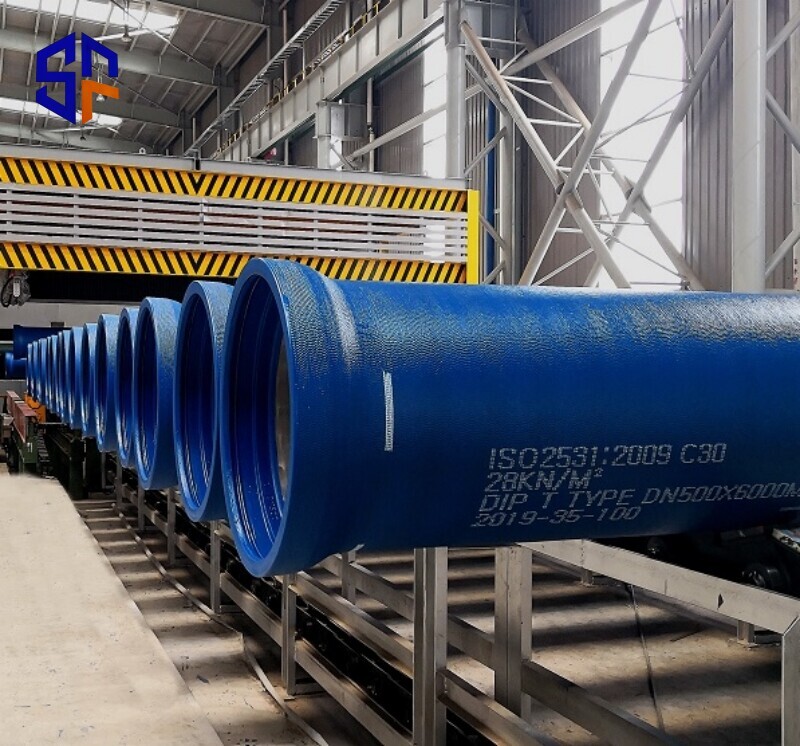

DN Ductile Iron Pipe Class K9 C25 C30 C40 Socket Spigot Water Pipe
T-type C-grade socket ductile iron pipe has become the preferred material for modern municipal pipe network construction due to its high pressure adaptability, excellent corrosion resistance and flexible interface design. Its standardized production (in compliance with multiple standards such as ISO/GB/EN) and full-scenario applicability (water supply, drainage, heating, etc.) provide a reliable and economical solution for infrastructure.
1. Product definition and standards
C-level definition: represents the pressure level standard of the pipeline, divided according to the international standard ISO2531 and the national standard GB/T13295-2019, GB/T26081-2022, common levels include:
C25: working pressure 2.5MPa
C30: working pressure 3.0MPa
C40: working pressure 4.0MPa.
Core material: ductile iron (graphite has a spherical structure), with high mechanical properties (tensile strength 370~480MPa), combining the strength of steel and the corrosion resistance of iron.
2. Specifications and parameters
Diameter range: DN80 to DN2600, covering the needs of small and medium-sized water supply to large municipal pipe networks.
Single pipe length: The standard effective length is 6 meters, and some manufacturers provide 6~6.5 meters customization.
Interface form: T-type socket-type flexible interface, sealed with rubber ring, allowing a certain angle of deflection (good seismic resistance and convenient installation).
3. Structural features
Inner anti-corrosion layer
Cement mortar lining: ordinary cement or high-alumina cement material, to ensure water delivery hygiene and reduce fluid resistance.
Outer anti-corrosion layer
Double-layer protection:
Spray zinc layer (≥130g/㎡, high-quality products up to 200g/㎡);
Final coating (asphalt paint or environmentally friendly epoxy resin paint, thickness ≥70μm).
Significantly improve soil environmental adaptability, design life of more than 50 years.
4. Performance advantages
High pressure bearing capacity: C40 grade can withstand 4.0MPa high pressure, suitable for long-distance water transfer and high-pressure pipeline network.
Flexible seismic resistance: T-type interface allows micro-displacement of pipelines to adapt to foundation settlement and seismic disturbance.
Economical: thin-wall design reduces material consumption, the comprehensive cost is lower than steel pipe, and the maintenance cost is low.
Environmental protection and sanitation: cement lining meets drinking water safety standards (such as ISO4179).
Standard Size
Mauritania Project
In the process of urban construction in Mauritania, ductile iron pipes have laid a solid foundation for the reliable operation of municipal projects with their excellent performance.
Ethiopia kismayo urban water supply
It is resistant to high temperature and salt-alkali corrosion, adapted to the local desert climate and soil conditions, and ensures long-term and stable water supply in the pipeline.
Durban, South Africa
The flexible interface speeds up installation, is suitable for pipe network renovation in old urban areas, facilitates subsequent maintenance, and reduces operating costs.
Durban City Water Supply, South Africa
Adapted to Durban's hot and humid climate and coastal saline environment, the anti-corrosion coating effectively resists rust and ensures the long-term stability of the water supply system.
Dammam, Saudi Arabia
Adapting to the hot and dry climate of Daman, the pipeline has strong thermal stability, ensuring the reliable operation of the water supply system in hot environments.
Shaanxi sewage renovation
The inner wall anti-corrosion layer resists the erosion of acid and alkali substances in sewage, adapts to complex water quality, and extends the service life of the pipeline.
Xinjiang
Adapting to the large temperature difference between day and night and seasons in Xinjiang, the pipeline has strong stability in thermal expansion and contraction, ensuring smooth water supply.
Greek City Water Supply
Adapted to the water quality characteristics of Greek coastal cities, it resists seawater backflow and salt erosion, and ensures stable water quality.
