Ductile Iron Reducers

Name: Ductile Iron Reducers
SKU: 0

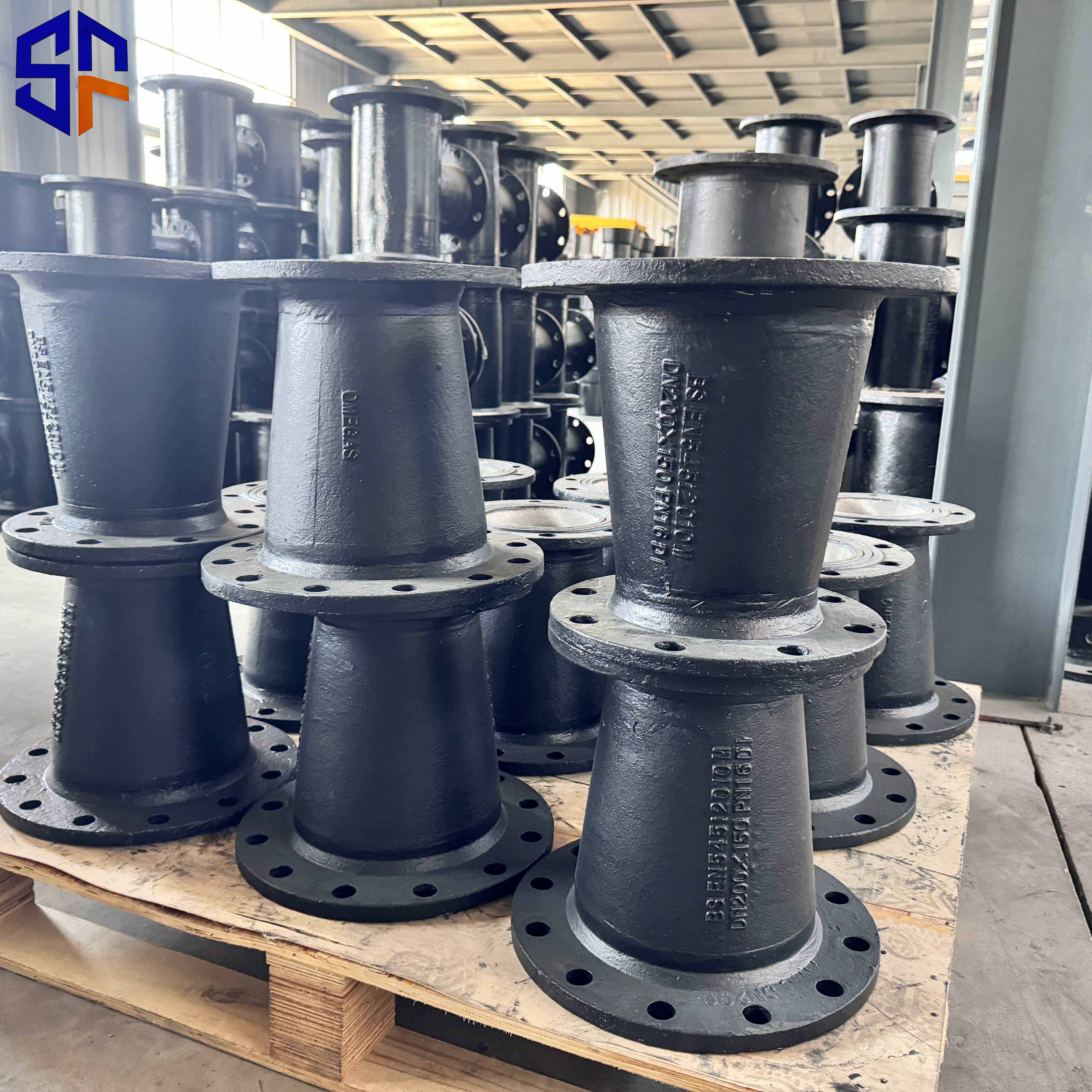

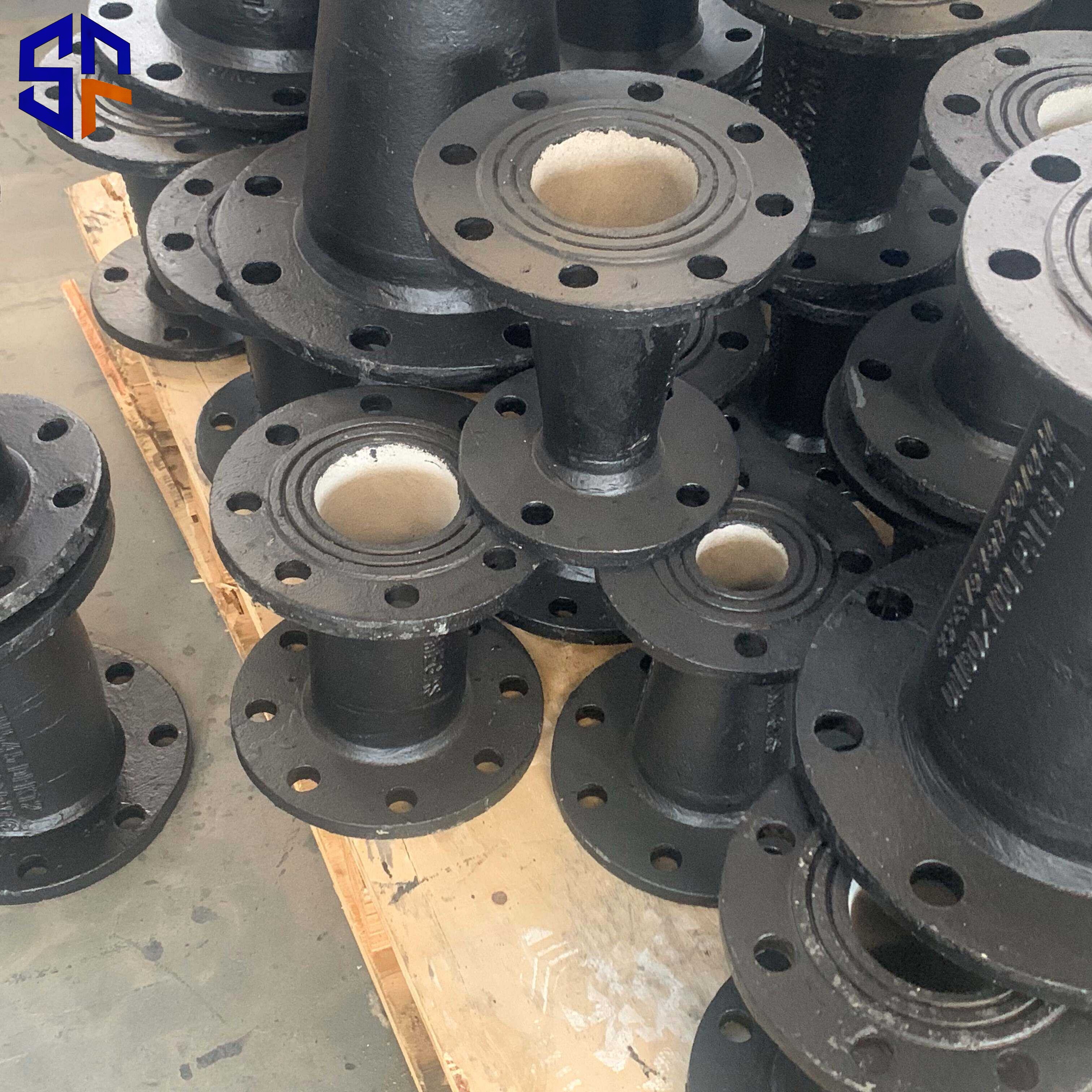

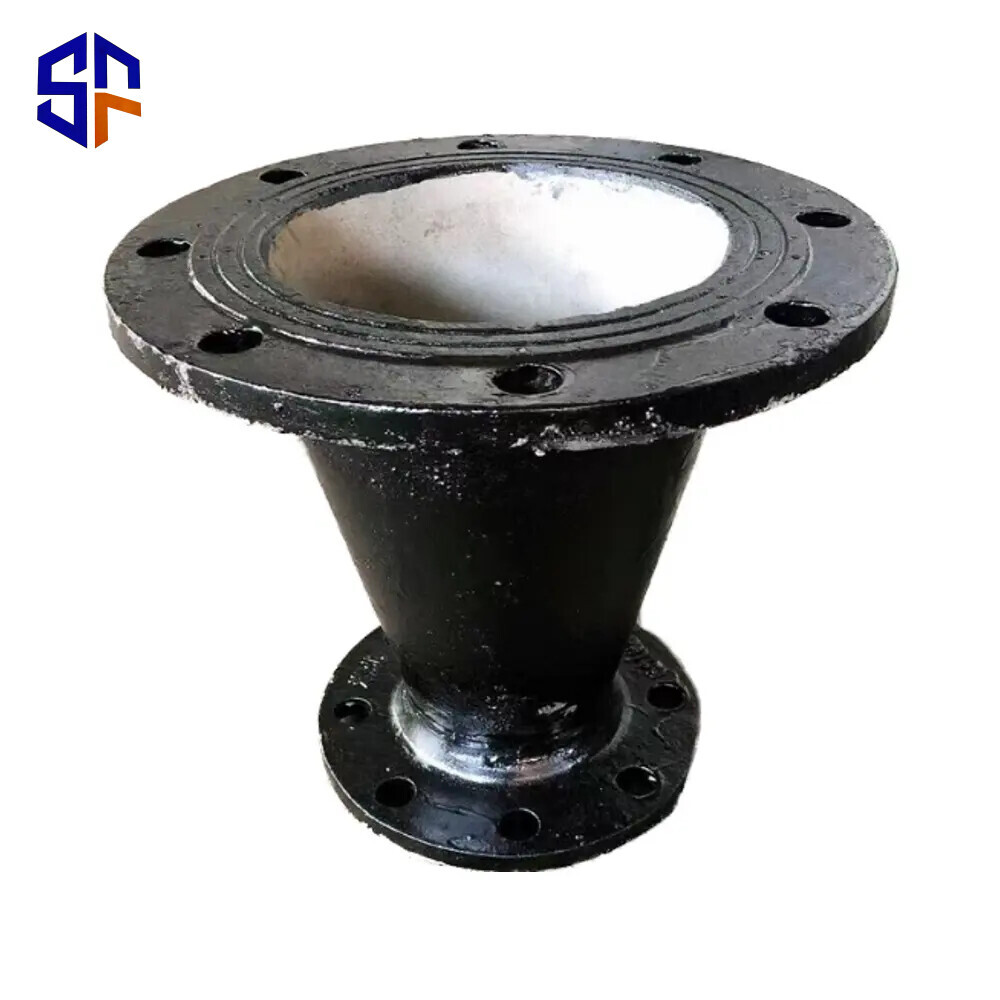

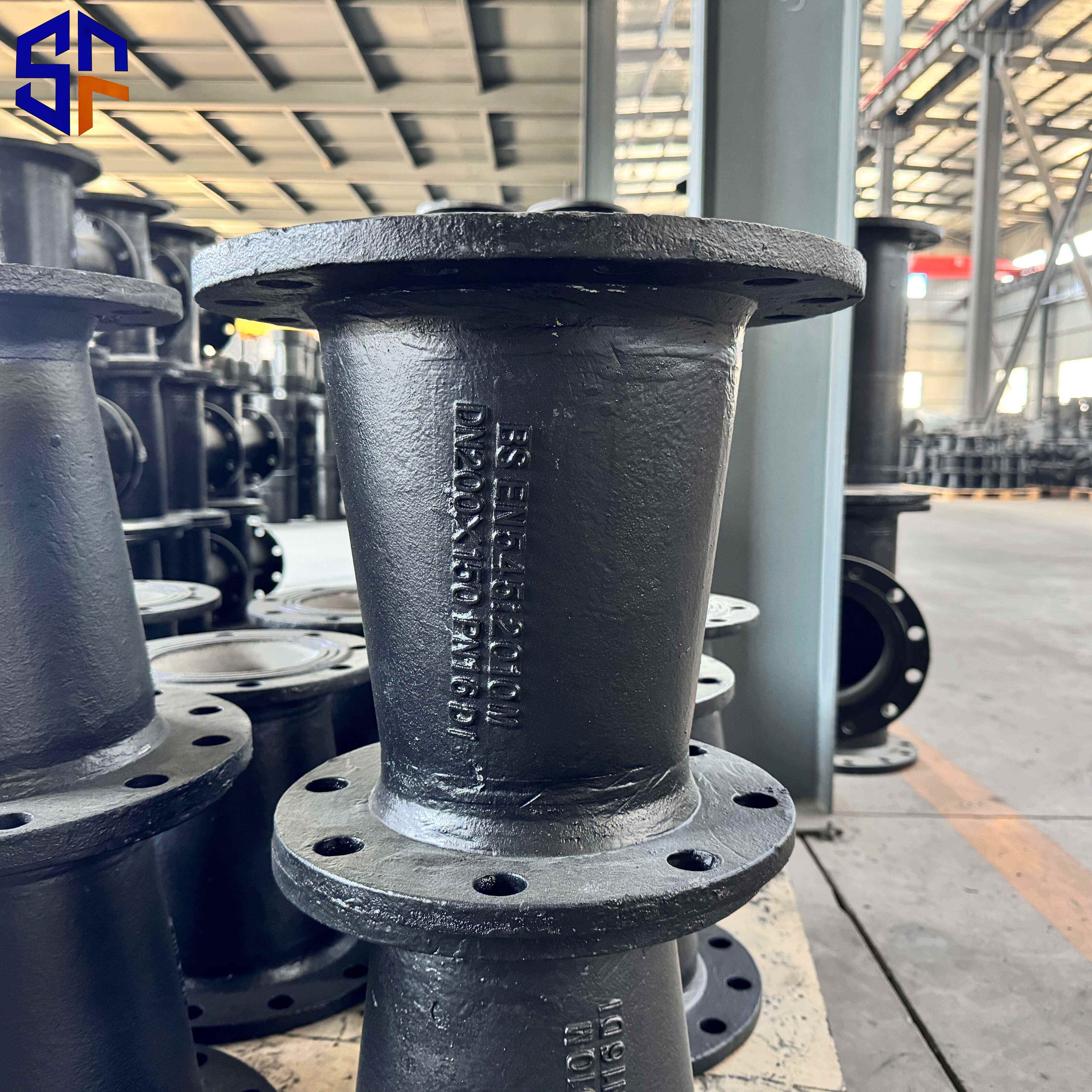

Ductile iron reducers are pipe fittings made of ductile iron with gradually decreasing diameters. They combine the strength and durability of ductile iron with the design of reducers to connect pipes of different diameters and effectively control fluid flow.

Phone ：+86 18626338187

WhatsApp : +86 18626338187

Email : ivan@snrcasting.com

Contact Us

Product Description

Product Display

Ductile iron reducers have the following characteristics:

High strength and durability:

Ductile iron has excellent mechanical properties and can withstand high pressure and impact, which enables the reducer to operate stably for a long time.

Good corrosion resistance:

Ductile iron has certain corrosion resistance and is suitable for conveying a variety of fluids, including water, gas, etc.

Tapered design:

Tapered design can accelerate the fluid in the pipeline, reduce energy loss, and improve the conveying efficiency.

Easy connection:

Ductile iron reducers usually have flanges or other connection methods, which are convenient for connection with other pipe fittings.

Ductile iron reducers are widely used in the following fields:

Water supply network: connect water supply pipelines of different diameters to achieve flow regulation and pressure control.

Oil pipeline: In the oil and gas transmission system, it is used to connect pipelines of different diameters to ensure the smoothness and safety of transportation.

Municipal engineering: used for the construction and transformation of various municipal pipelines, such as drainage, heating, etc.

Industrial pipeline: used to convey various fluids in various industrial production processes.

Serial number	name	Model ( mm )	Weight ( kg )
1	Socket reducer	100/80	8.5
2	Socket reducer	125/80	10.8
3	Socket reducer	125/100	11.1
4	Socket reducer	150/80	13.5
5	Socket reducer	150/100	13.8
6	Socket reducer	150/125	14.4
7	Socket reducer	200/100	20.5
8	Socket reducer	200/125	20.5
9	Socket reducer	200/150	21
10	Socket reducer	250/100	28.5
11	Socket reducer	250/125	29
12	Socket reducer	250/150	29
13	Socket reducer	250/200	29
14	Socket reducer	300/100	39
15	Socket reducer	300/150	39.5
16	Socket reducer	300/200	39.5
17	Socket reducer	300/250	38.5
18	Socket reducer	350/100	50
19	Socket reducer	350/150	52
20	Socket reducer	350/200	52
21	Socket reducer	350/250	51
22	Socket reducer	350/300	49.5
23	Socket reducer	400/100	65
24	Socket reducer	400/150	66.5
25	Socket reducer	400/200	67
26	Socket reducer	400/250	66
27	Socket reducer	400/300	64
28	Socket reducer	400/350	62
29	Socket reducer	450/100	87.9
30	Socket reducer	450/150	88.9
31	Socket reducer	450/200	89.2
32	Socket reducer	450/250	88.9
33	Socket reducer	450/300	88.1
34	Socket reducer	450/350	86
35	Socket reducer	450/400	83.1
36	Socket reducer	500/100	101
37	Socket reducer	500/150	102
38	Socket reducer	500/200	101
39	Socket reducer	500/250	101
40	Socket reducer	500/300	100
41	Socket reducer	500/350	98
42	Socket reducer	500/400	94
43	Socket reducer	500/450	99.5
44	Socket reducer	600/100	152
45	Socket reducer	600/150	153
46	Socket reducer	600/200	154
47	Socket reducer	600/250	153
48	Socket reducer	600/300	152
49	Socket reducer	600/350	151
50	Socket reducer	600/400	142
51	Socket reducer	600/450	149
52	Socket reducer	600/500	131
53	Socket reducer	700/500	194
54	Socket reducer	700/600	178
55	Socket reducer	800/100	320
56	Socket reducer	800/200	315
57	Socket reducer	800/300	292
58	Socket reducer	800/400	285
59	Socket reducer	800/500	270
60	Double socket reducer	800/600	252
61	Socket reducer	800/700	229
62	Socket reducer	900/700	318
63	Socket reducer	900/800	288
64	Socket reducer	1000/600	430
65	Socket reducer	1000/800	392
66	Socket reducer	1000/900	354

Factory Display

Customer Visit

Project Cases

Mauritania Project

In the process of urban construction in Mauritania, ductile iron pipes have laid a solid foundation for the reliable operation of municipal projects with their excellent performance.

Ethiopia kismayo urban water supply

It is resistant to high temperature and salt-alkali corrosion, adapted to the local desert climate and soil conditions, and ensures long-term and stable water supply in the pipeline.

Durban, South Africa

The flexible interface speeds up installation, is suitable for pipe network renovation in old urban areas, facilitates subsequent maintenance, and reduces operating costs.

Durban City Water Supply, South Africa

Adapted to Durban's hot and humid climate and coastal saline environment, the anti-corrosion coating effectively resists rust and ensures the long-term stability of the water supply system.

Dammam, Saudi Arabia

Adapting to the hot and dry climate of Daman, the pipeline has strong thermal stability, ensuring the reliable operation of the water supply system in hot environments.

Shaanxi sewage renovation

The inner wall anti-corrosion layer resists the erosion of acid and alkali substances in sewage, adapts to complex water quality, and extends the service life of the pipeline.

Xinjiang

Adapting to the large temperature difference between day and night and seasons in Xinjiang, the pipeline has strong stability in thermal expansion and contraction, ensuring smooth water supply.

Greek City Water Supply

Adapted to the water quality characteristics of Greek coastal cities, it resists seawater backflow and salt erosion, and ensures stable water quality.
