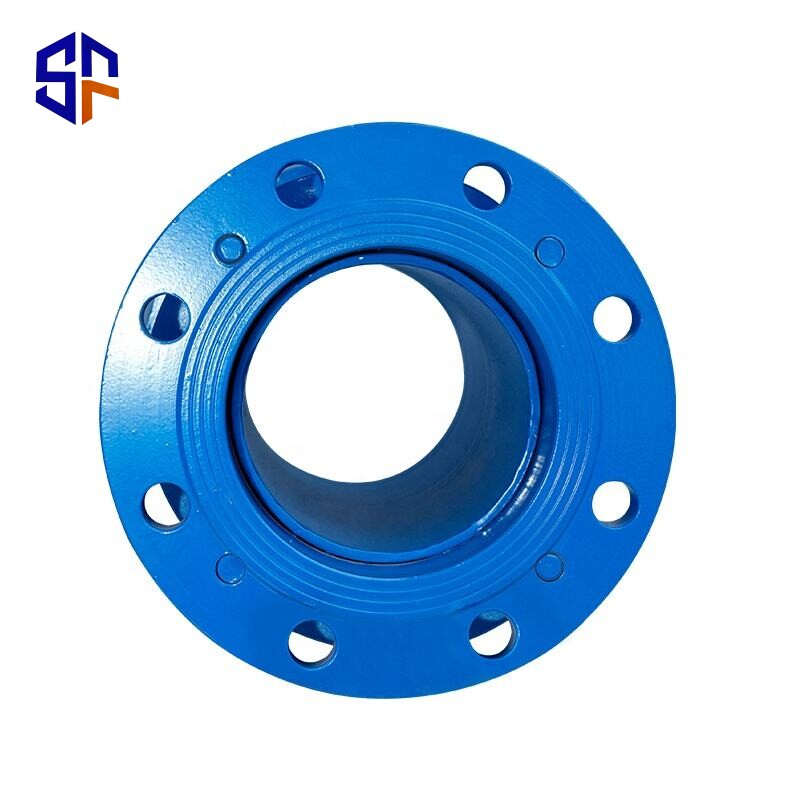

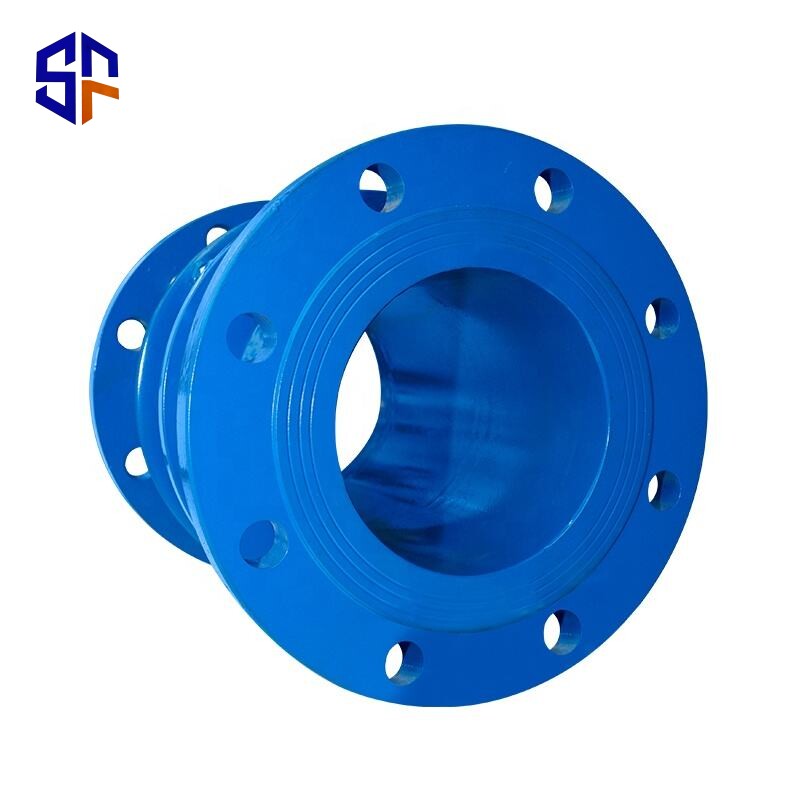

Dismantling joint
The limit compensation joint is composed of components such as a loose sleeve compensation joint and a limit expansion pipe, to prevent leakage or damage of the compensation joint caused by excessive displacement of the pipeline. It is a device used to absorb axial displacement and bear pressure and thrust within the allowable displacement range for loose sleeve connection of the pipeline.

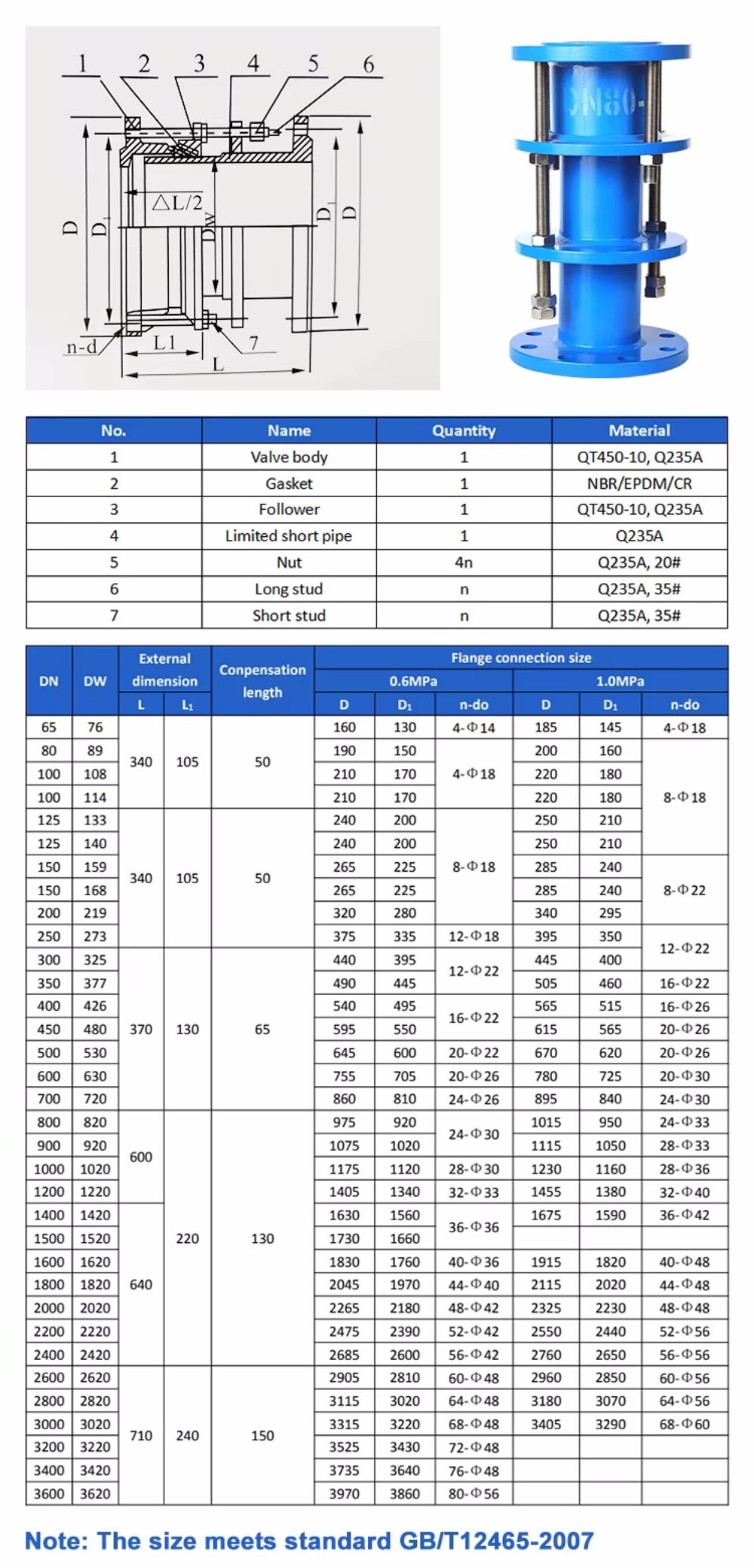

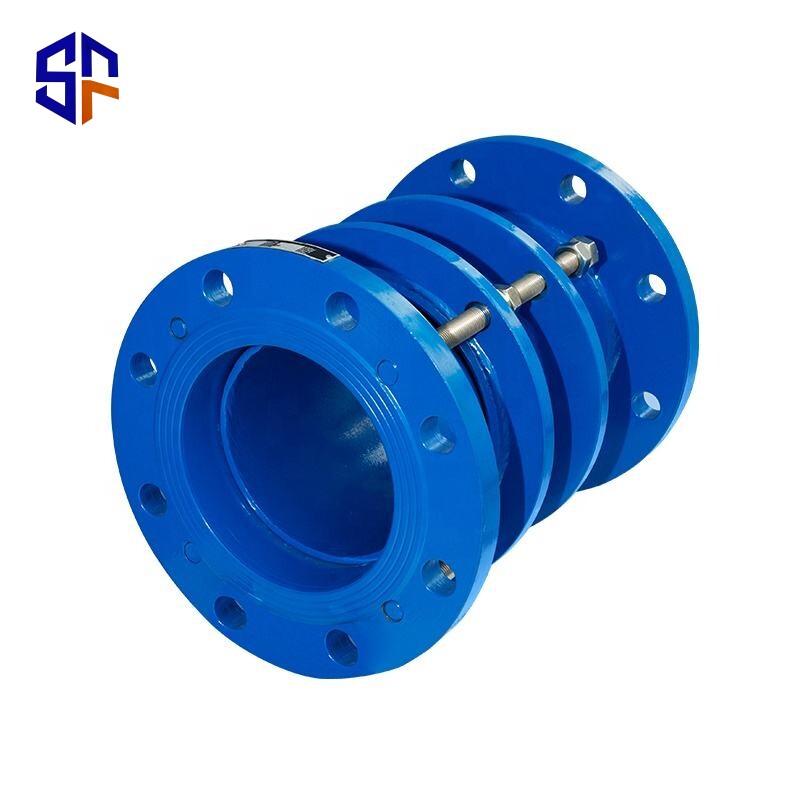

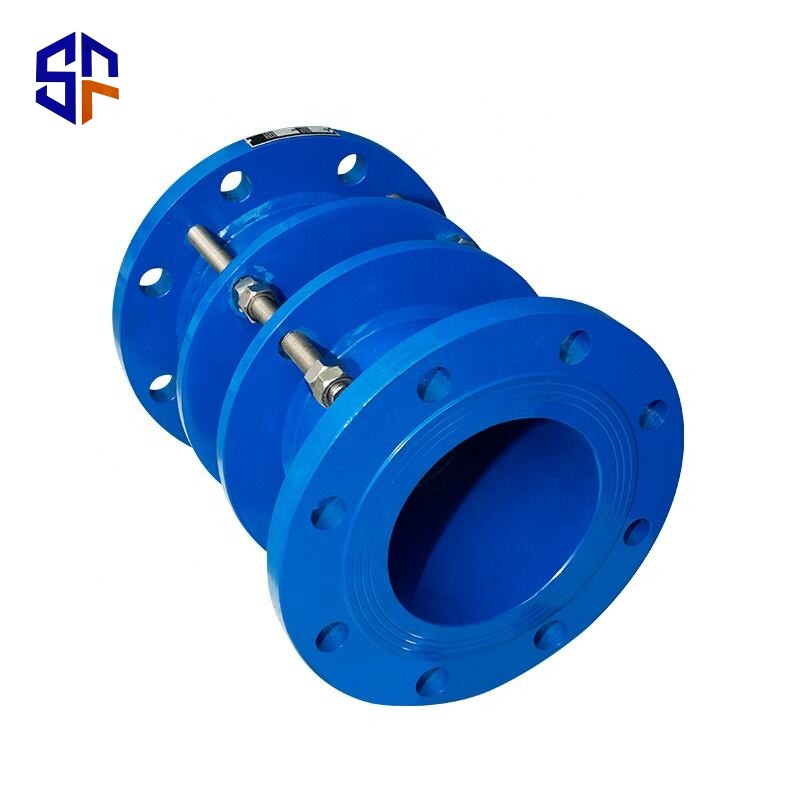

The double flange limit expansion joint is composed of main components such as the body, sealing ring, gland, and expansion short pipe. On the basis of the original performance of the loose sleeve expansion joint, a limit screw is added, and double nuts are used to lock at the maximum expansion amount. The pipeline can freely expand and expand within the allowed expansion and contraction amount, and once it exceeds its maximum expansion and contraction amount, it reaches a limit to ensure the safe operation of the pipeline.
It is particularly suitable for connections in pipelines with vibration, certain degrees of curvature, and bends. The force transmission compensation joint is composed of a flange loose sleeve compensation joint, a short pipe flange, a force transmission screw, and other components. It transmits the pressure and thrust of the connected parts and compensates for pipeline installation errors, without absorbing axial displacement. It is a device used for loose sleeve connection with accessories such as pumps and valves. During normal operation, axial thrust can be transmitted to the entire pipeline. This not only improves work efficiency, but also provides certain protection for equipment such as pumps and valves; The short pipe has a fixed expansion displacement, which can be adjusted according to the on-site installation size during installation and maintenance.
Mauritania Project
In the process of urban construction in Mauritania, ductile iron pipes have laid a solid foundation for the reliable operation of municipal projects with their excellent performance.
Ethiopia kismayo urban water supply
It is resistant to high temperature and salt-alkali corrosion, adapted to the local desert climate and soil conditions, and ensures long-term and stable water supply in the pipeline.
Durban, South Africa
The flexible interface speeds up installation, is suitable for pipe network renovation in old urban areas, facilitates subsequent maintenance, and reduces operating costs.
Durban City Water Supply, South Africa
Adapted to Durban's hot and humid climate and coastal saline environment, the anti-corrosion coating effectively resists rust and ensures the long-term stability of the water supply system.
Dammam, Saudi Arabia
Adapting to the hot and dry climate of Daman, the pipeline has strong thermal stability, ensuring the reliable operation of the water supply system in hot environments.
Shaanxi sewage renovation
The inner wall anti-corrosion layer resists the erosion of acid and alkali substances in sewage, adapts to complex water quality, and extends the service life of the pipeline.
Xinjiang
Adapting to the large temperature difference between day and night and seasons in Xinjiang, the pipeline has strong stability in thermal expansion and contraction, ensuring smooth water supply.
Greek City Water Supply
Adapted to the water quality characteristics of Greek coastal cities, it resists seawater backflow and salt erosion, and ensures stable water quality.
